from einops import rearrange
import torch
from PIL import Image
import torchvision.transforms as transforms
from torch import nn
import numpy as np
# %%
class DiNOv2(torch.nn.Module):
def __init__(self, ver="dinov2_vitb14_reg"):
super().__init__()
self.dinov2 = torch.hub.load("facebookresearch/dinov2", ver)
self.dinov2.requires_grad_(False)
self.dinov2.eval()
self.dinov2 = self.dinov2.cuda()
def new_block_forward(self, x: torch.Tensor) -> torch.Tensor:
def attn_residual_func(x):
return self.ls1(self.attn(self.norm1(x)))
def ffn_residual_func(x):
return self.ls2(self.mlp(self.norm2(x)))
attn_output = attn_residual_func(x)
self.attn_output = attn_output.clone()
x = x + attn_output
mlp_output = ffn_residual_func(x)
self.mlp_output = mlp_output.clone()
x = x + mlp_output
block_output = x
self.block_output = block_output.clone()
return x
setattr(self.dinov2.blocks[0].__class__, "forward", new_block_forward)
@torch.no_grad()
def forward(self, x):
out = self.dinov2(x)
attn_outputs, mlp_outputs, block_outputs = [], [], []
for i, blk in enumerate(self.dinov2.blocks):
attn_outputs.append(blk.attn_output)
mlp_outputs.append(blk.mlp_output)
block_outputs.append(blk.block_output)
attn_outputs = torch.stack(attn_outputs)
mlp_outputs = torch.stack(mlp_outputs)
block_outputs = torch.stack(block_outputs)
return attn_outputs, mlp_outputs, block_outputs
def image_dino_feature(
images, resolution=(448, 448),
):
if isinstance(images, list):
assert isinstance(images[0], Image.Image), "Input must be a list of PIL images."
else:
assert isinstance(images, Image.Image), "Input must be a PIL image."
images = [images]
transform = transforms.Compose(
[
transforms.Resize(resolution),
transforms.ToTensor(),
transforms.Normalize([0.485, 0.456, 0.406], [0.229, 0.224, 0.225]),
]
)
feat_extractor = DiNOv2()
attn_outputs, mlp_outputs, block_outputs = [], [], []
for i, image in enumerate(images):
torch_image = transform(image)
# feat = feat_extractor(torch_image.unsqueeze(0).cuda()).cpu()
attn_output, mlp_output, block_output = feat_extractor(
torch_image.unsqueeze(0).cuda()
)
# feats.append(feat)
attn_outputs.append(attn_output.cpu())
mlp_outputs.append(mlp_output.cpu())
block_outputs.append(block_output.cpu())
attn_outputs = torch.cat(attn_outputs, dim=1)
mlp_outputs = torch.cat(mlp_outputs, dim=1)
block_outputs = torch.cat(block_outputs, dim=1)
# feats = torch.cat(feats, dim=1)
# feats = rearrange(feats, "l b c h w -> l b h w c")
return attn_outputs, mlp_outputs, block_outputs
# %%
from torchvision.datasets import ImageFolder
dataset = ImageFolder("/data/coco/")
print("number of images in the dataset:", len(dataset))
# %%
images = [dataset[i][0] for i in range(20)]
attn_outputs, mlp_outputs, block_outputs = image_dino_feature(images)
# %%
print(attn_outputs.shape, mlp_outputs.shape, block_outputs.shape)
# remove 1 cls token 4 reg tokens
def reshape_output(outputs):
from einops import rearrange
outputs = rearrange(outputs[:, :, 5:, :], "l b (h w) c -> l b h w c", h=32, w=32)
return outputs
attn_outputs = reshape_output(attn_outputs)
mlp_outputs = reshape_output(mlp_outputs)
block_outputs = reshape_output(block_outputs)
# %%
num_nodes = np.prod(attn_outputs.shape[1:4])
# %%
from ncut_pytorch import NCUT, rgb_from_tsne_3d
for i_layer in range(12):
attn_eig, _ = NCUT(num_eig=100, device="cuda:0").fit_transform(
attn_outputs[i_layer].reshape(-1, attn_outputs[i_layer].shape[-1])
)
_, attn_rgb = rgb_from_tsne_3d(attn_eig, device="cuda:0")
attn_rgb = attn_rgb.reshape(attn_outputs[i_layer].shape[:3] + (3,))
mlp_eig, _ = NCUT(num_eig=100, device="cuda:0").fit_transform(
mlp_outputs[i_layer].reshape(-1, mlp_outputs[i_layer].shape[-1])
)
_, mlp_rgb = rgb_from_tsne_3d(mlp_eig, device="cuda:0")
mlp_rgb = mlp_rgb.reshape(mlp_outputs[i_layer].shape[:3] + (3,))
block_eig, _ = NCUT(num_eig=100, device="cuda:0").fit_transform(
block_outputs[i_layer].reshape(-1, block_outputs[i_layer].shape[-1])
)
_, block_rgb = rgb_from_tsne_3d(block_eig, device="cuda:0")
block_rgb = block_rgb.reshape(block_outputs[i_layer].shape[:3] + (3,))
from matplotlib import pyplot as plt

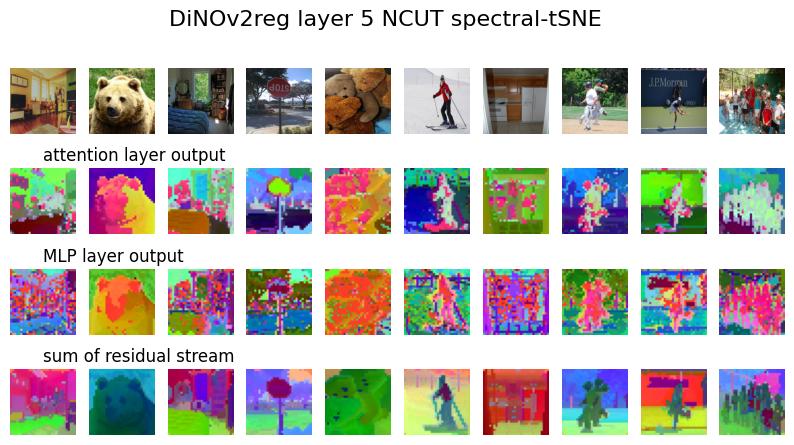

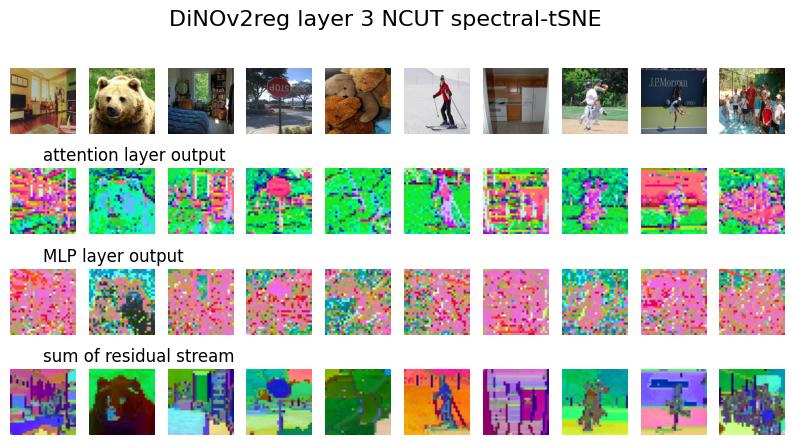

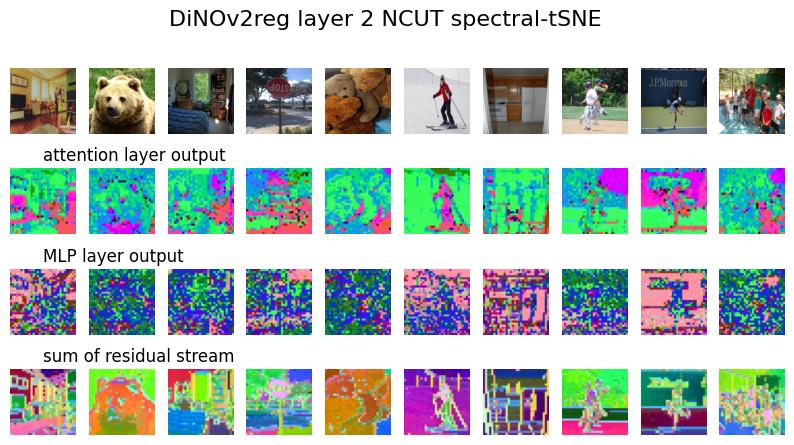

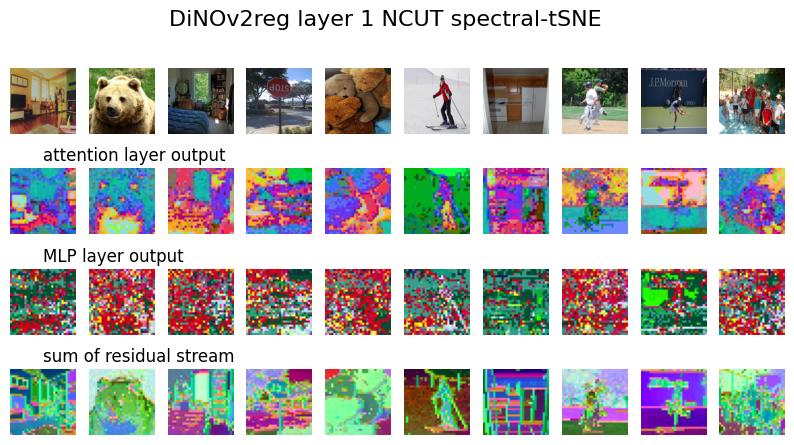

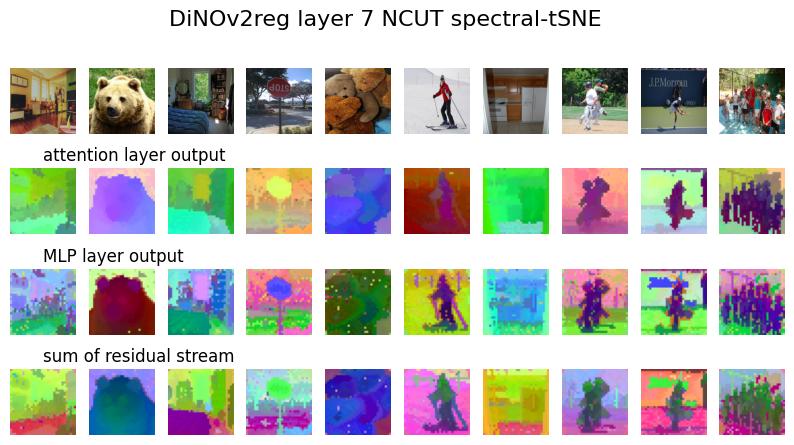

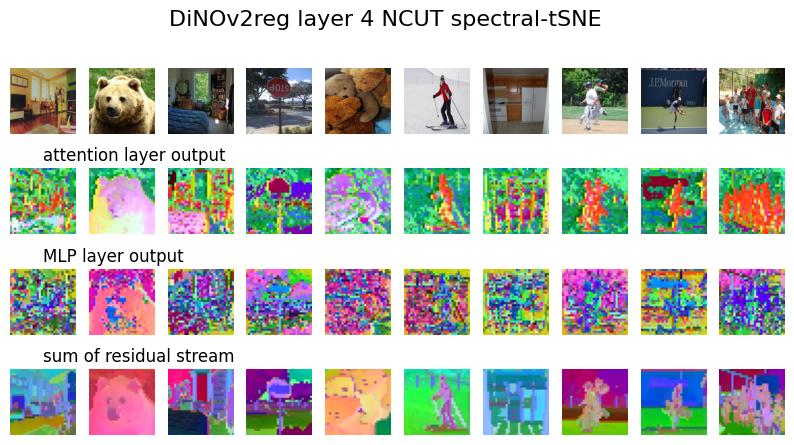

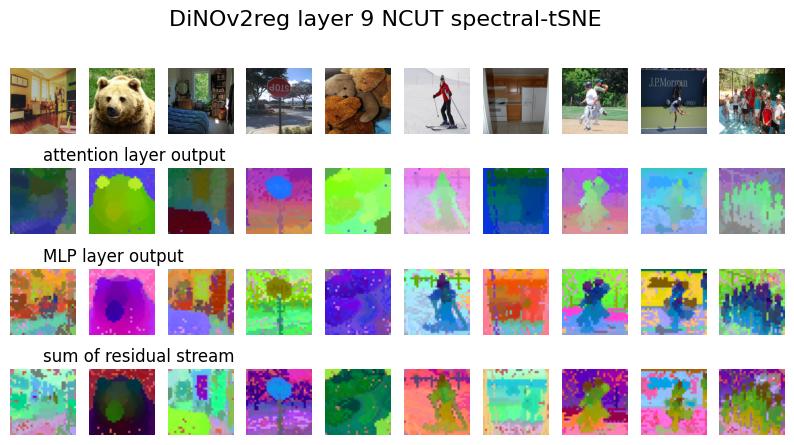

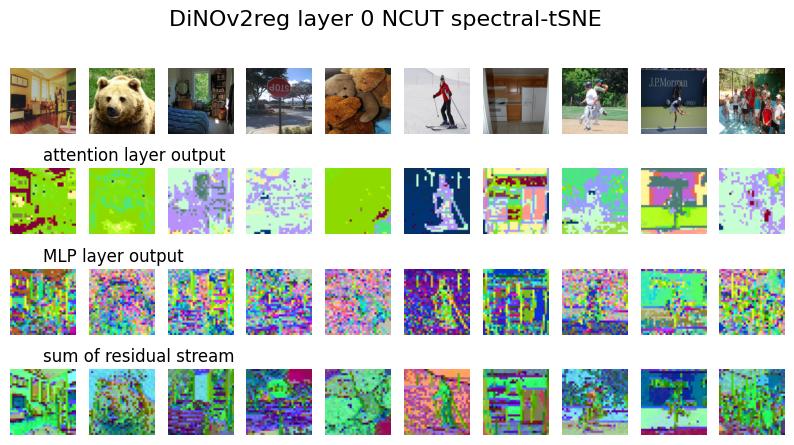

fig, axs = plt.subplots(4, 10, figsize=(10, 5))
for ax in axs.flatten():
ax.axis("off")
for i_col in range(10):
axs[0, i_col].imshow(images[i_col])
axs[1, i_col].imshow(attn_rgb[i_col])
axs[2, i_col].imshow(mlp_rgb[i_col])
axs[3, i_col].imshow(block_rgb[i_col])
axs[1, 0].set_title("attention layer output", ha="left")
axs[2, 0].set_title("MLP layer output", ha="left")
axs[3, 0].set_title("sum of residual stream", ha="left")

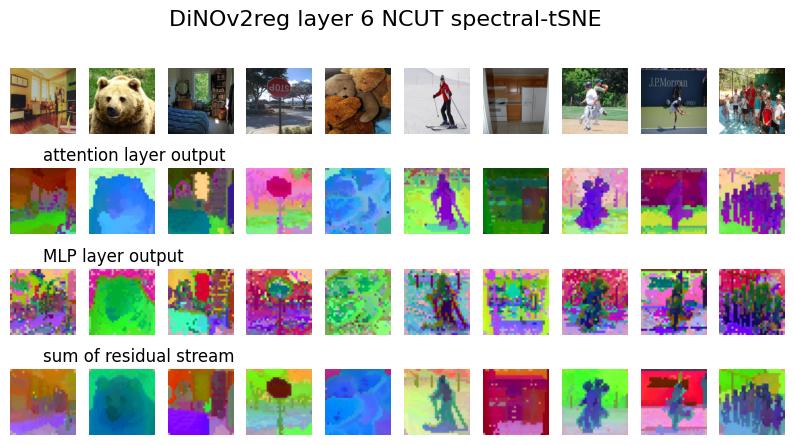

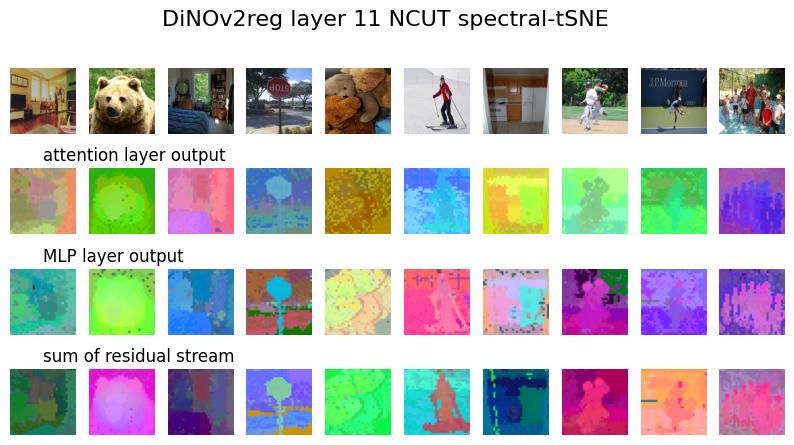

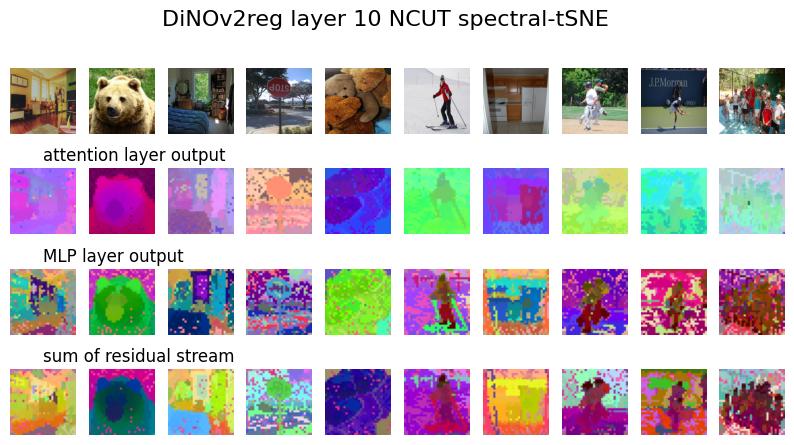

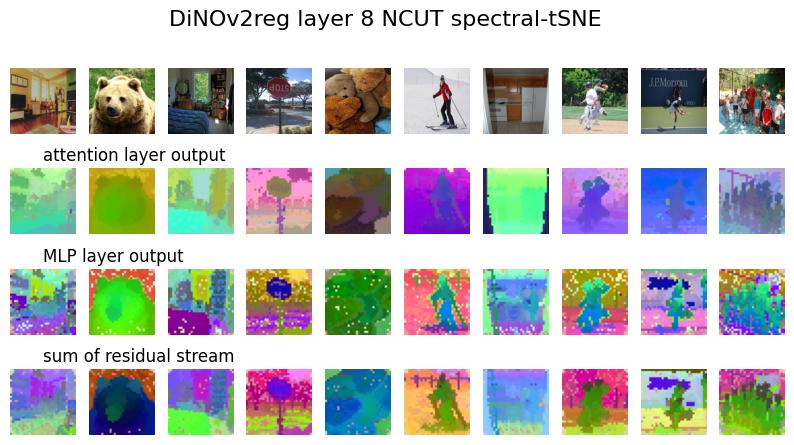

plt.suptitle(f"DiNOv2reg layer {i_layer} NCUT spectral-tSNE", fontsize=16)
# plt.show()
save_dir = "/workspace/output/gallery/dinov2reg"
import os
os.makedirs(save_dir, exist_ok=True)
plt.savefig(f"{save_dir}/dinov2reg_layer_{i_layer}.jpg", bbox_inches="tight")
plt.close()
exit(0)
